美国LA-26附着力测试胶带
管理员 发布日期：2015-5-31 点击数：5974次
产品简介：美国P-99百格测试胶带2009年9月已经停产，美国标准协会指定替代用胶带为美国LA-26测试胶带，美国LA-26百格测试胶带是美国P-99胶带的替换产品，是美国ASTM国际附着力D3359标准的唯一指定测试胶带，规格：25mm*55M
产品介绍：

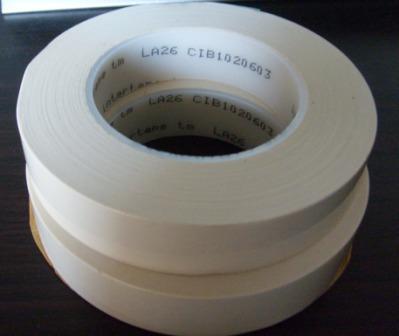

美国LA-26百格测试胶带
American Puma Si P-99 alternative Tape Polyester/rope fiber laminate; offers bulk and stiffness;hand tears for tabbing, holding & wrapping

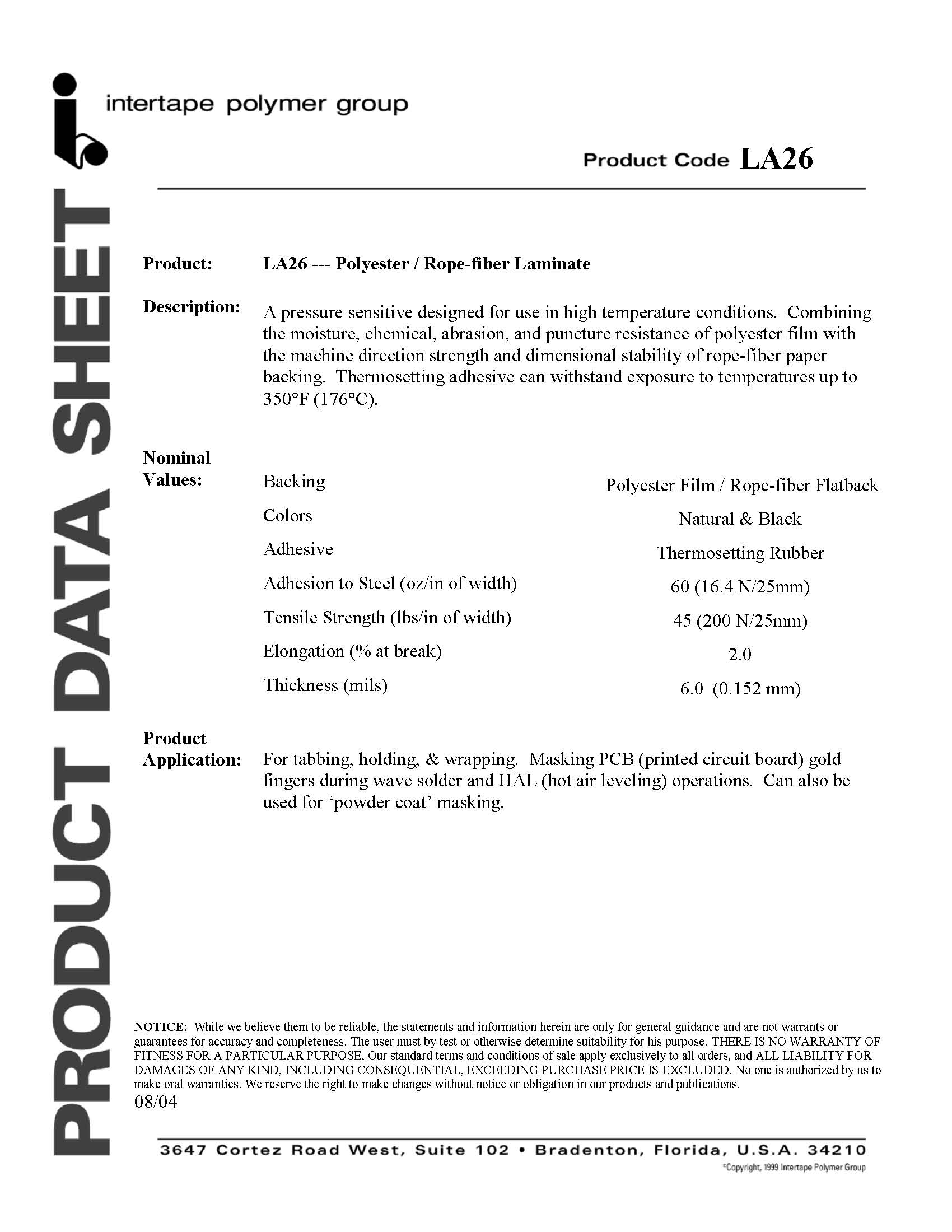

Intertape LA-26 Polyester/Rope-Fiber Laminate Tape combines the moisture, chemical, abrasion an d puncture resistance of polyester film with the machine direction strength and dimensional stability of rope-fiber paper backing, this pressure sensitive adhesive is designed for use in high temperature conditions. It is ideal for tabbing, holding and wrapping, masking PCB gold fingers during wave solder and HAL operations. It can also be used for "powder coat" masking. It is also currently being considered as a replacement to Permacel P-99 for ASTM D3359-08 adhesion testing.
Physical Characteristics
|
ROLL SIZE |
Tensile |
Adhesion |
Thickness |
Elongation |
|||
|
1 in. x60 yds. |
lb/in |
N/25mm |
oz/in |
N/25mm |
mils |
mm |
% |
|
Actual Size:25mmx55m |
45.0 |
197.0 |
60.0 |
16.7 |
6.0 |
0.15 |
2.0 |
备注：

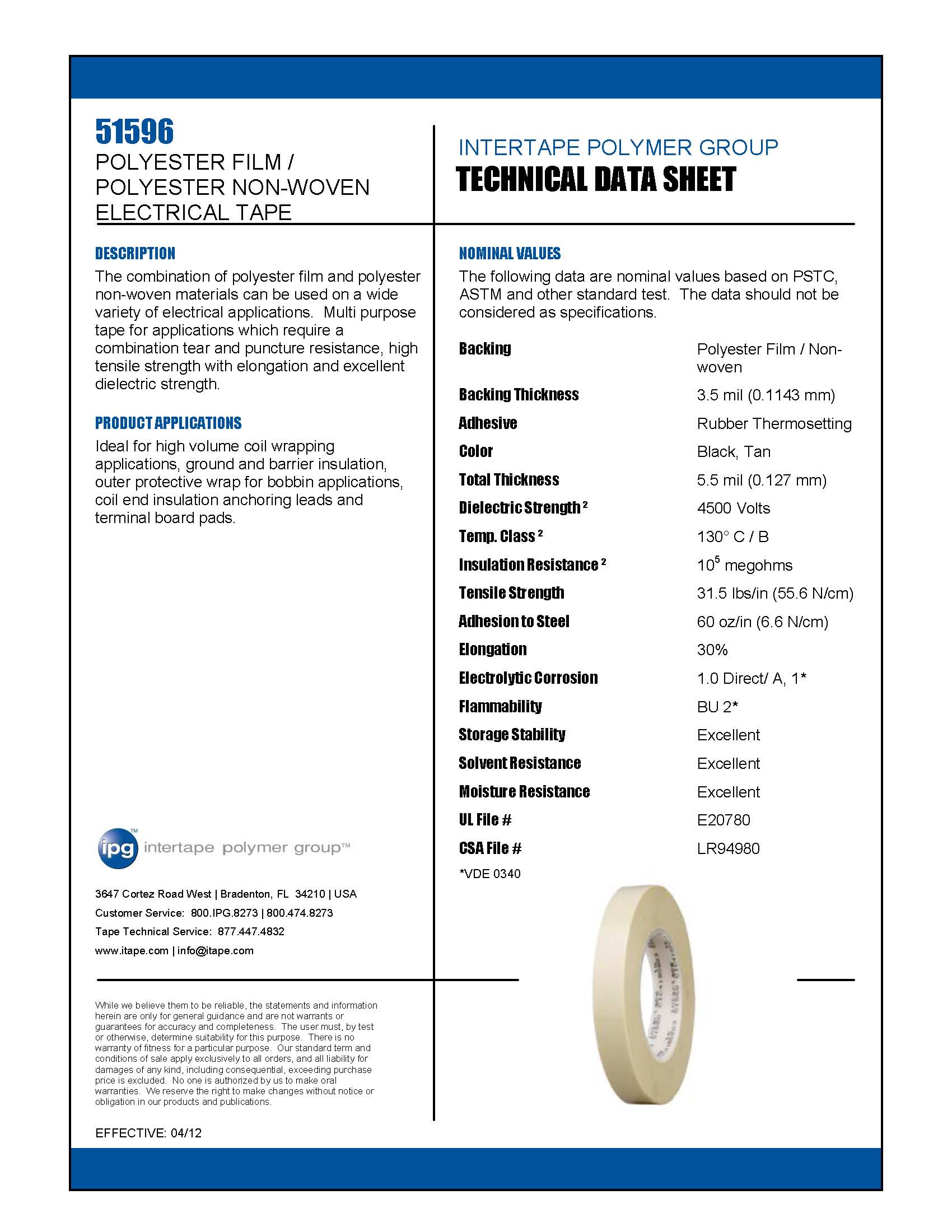

同一品牌LA-26可与IPG51596互代使用参数如下对比：
